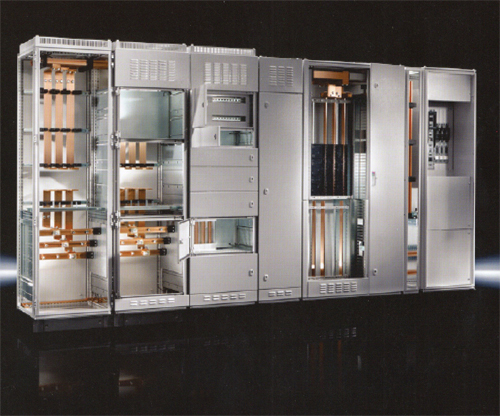

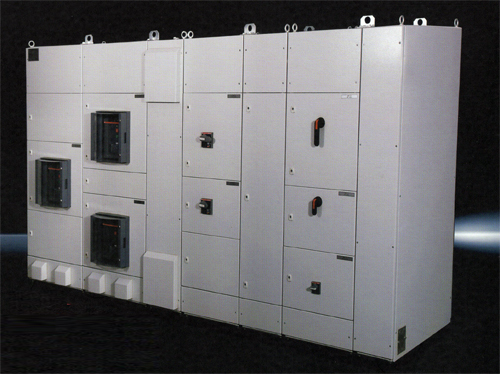

Ri4Power Form 1 to Form 4 :
Modular Enclosure System
• Based on TS 8 platform
• Modular, flexible & scalable design
• Enclosure with highest static load capacity of more than 1400 kg
• Modular compartment configuration for internal
• compartmentalisation up to Form 4b Type 7
• Simple installation & friendly system assembly
• Structured system solution to suit makes of switchgear like ABB
and Schneider
Technical Specifications:
• Rated Voltage - 415 V
• Rated current for Aluminium Busbars up to
6,300 A
• Short circuit current rating for Aluminium Busbars up to
80 kA/sec
• Protection Category up to
IP 54
• Form of Separation up to
Form 4b, Type 7
• Mechanical impact up to
IK10
• Panels tested and suitable for two tier ACB design
• Tested Solution for double front design
• Lowest aluminium cross section requirement for a rated current,
compared to available solutions in the market

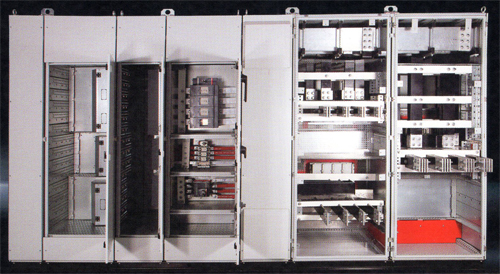

Ri4Power Form 1 to Form 4 - Universal Design at its best:
The Rittal TS 8 platform :
When safe and efficient power distribution is needed - Rittal Ri4Power is the answer. Made of 16 fold profile frames, with a cross section thickness of 3 mm, Ri4Power is one of the most versatile, reliable, 4" rugged and safe enclosure solutions in the Indian Market. The Ri4Power enclosure system makes it possible to construct any type of low voltage switchboard.
The TS 8 enclosures can be combined to form Power Control Centres (PCC), Motor Control Centres (MCC) and sub distribution boards (DB) in fixed execution for installation in industry & utilities. They have been designed to accommodate leading brands of circuit breakers and switchgear that proliferate the market. They are also flexible to meet the executional design requirements of panel
